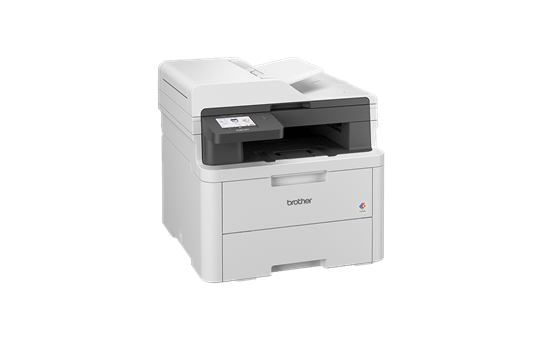

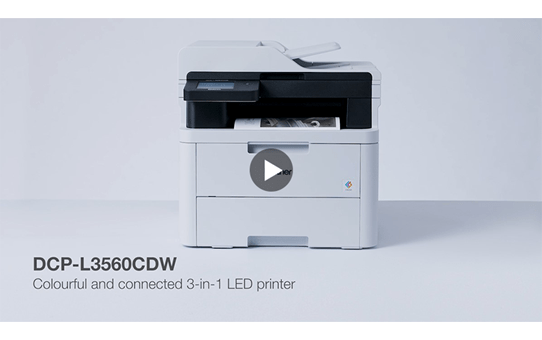

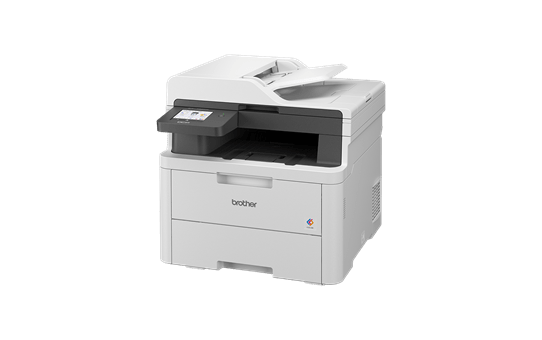

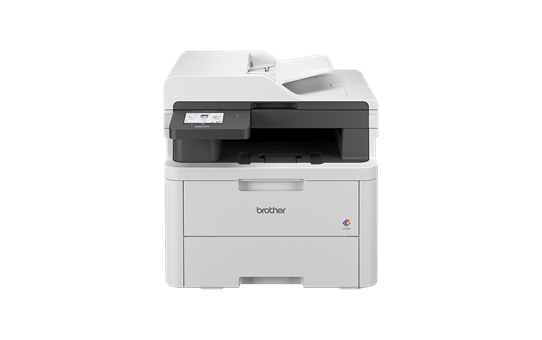

DCP-L3560CDW | Colour Laser Multi-Function

Overview

Combining outstanding performance with fast print speeds, minimal maintenance, and long-lasting supplies. The compact, whisper-quiet DCP-L3560CDW has been expertly engineered to feature the latest industry-standard security. Be confident that this colour LED will meet the needs of your home or small office with ease.

Is this the right printer for my needs?

Find out by answering five simple questions using our helpful
Printer Selector Tool.

Quiet without compromise

Engineered to print quietly while delivering speeds up to 25% faster than the previous generation, so you can print continuously without distraction and focus on your work.

Designed to go the distance

Built to perform for longer, made from robust and hard-wearing materials and supported by outstanding service as standard. Delivers uncompromised performance at all times.

Secure by design

Keep pace with the ever-evolving legislation on privacy and data security - our devices offer the latest industry-standard security features to securely protect your data. Robust features include triple-layer security at a device, network and document level which is verified through external security certification.

Compact and expertly engineered

Our most compact colour range delivers high-quality outputs in a small footprint, allowing you to make the most of your space. Every component has been optimised to reduce the overall size of the device without compromising on performance.

Specification Details

Features and Specifications

Printer type	Colour
Function	Print, Copy, Scan
Display	Colour touchscreen
Display size	8.76cm TFT Colour LCD touchscreen
Max paper size	A4
Memory	512MB
Processor	MAIN:Cortex-A53 800MHz Sub: ARM946 133MHz
Technology	LED
Number of shortcuts	48

Connectivity	Wired Network, Wireless, USB
NFC	No
USB interface	Hi-speed USB 2.0 interface for connecting to a computer
Wi-Fi Direct	Yes
Wired network interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Wireless network interface	Wireless LAN 2.4GHz and 5GHz. Infrastructure Mode: IEEE 802.11b/g/n, IEEE 802.11a/n, Wi-Fi Direct: IEEE 802.11g/n, IEEE 802.11a/n.

Supported	AirPrint, Mopria™, Wi-Fi Direct™

2-sided copy	No
Resolution	600 x 600dpi
Speed	First copy out time from ready mode - less than 14.5 seconds (mono) and 15.5 seconds (colour)
Colour A4 copy speed	26 copies per minute
Mono A4 copy speed	26 copies per minute
N in 1	Yes (saves paper by copying two or four pages of your document onto one page of the copy)

Dimensions with carton	497 W x 536 D x 533 H mm
Weight with carton	23.3 kg
Dimensions without carton	410 W x 444 D x 401 H mm
Weight without carton (includes toner & drum)	20.0 kg

Printing	560 watts
Deep sleep mode	0.6 watts
Quiet mode (printing)	310 watts
Ready mode	70 watts
Sleep mode	10 watts
Off	0.04 watts

Operating humidity	20 - 80 %
Operating temperature	10 - 32.5 degrees Celsius
Storage humidity	35 - 85 %
Storage temperature	0 - 40 degrees Celsius
Sound power	Printing: Mono: LWAc = 6.41 B(A) Colour: LWAc = 6.51 B(A), Quiet mode: LWAc = 5.79 B(A) (Mono) LWAc = 5.86 B(A) (Colour)
Sound pressure	Printing: LpAm = 47 dB(A), Quiet mode: LpAm = 43 dB(A)

Contents	Inbox toner: BK: Approx. 1,000 pages in accordance with ISO/IEC 19798 CMY: Approx. 1,000 pages in accordance with ISO/IEC 19798

Types and sizes	Standard tray: Plain Paper, Thin Paper, Thick Paper, Recycled Paper, A4, Letter, Legal, Mexico Legal, India Legal, Executive, A5, A5 Long Edge, A6, B5(JIS), B5(ISO), B6(JIS), A4 Short(270㎜), Folio, 16K(195x270mm)
Weights	Standard tray: 60 to 163gsm, duplex and ADF: 60 to 105gsm

Wi-Fi Direct™	Yes
Wired network	Node type: NC-9700h type 2. Ethernet.
Wired network security	APOP, SMTP-AUTH, SSL/TLS (IPP, HTTP, SMTP, POP3, IMAP4, FTP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec
Wireless network	Node type: NC-9200w type2. Wireless LAN(2.4GHz & 5GHz)
Wireless network security	APOP, SMTP-AUTH, SSL/TLS (IPP, HTTP, SMTP, POP3, IMAP4, FTP), SNMP v3, 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec, WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only.

Supported	Windows Server 2012, Server 2012 R2, Server 2016, Server 2019, Server 2022, Windows 10, Windows 11, Linux, macOS 14.x, macOS 13.x, macOS12.x, macOS11.x

Paper input	Standard Tray: 250 sheets, Manual feed slot: 1 sheet, ADF: 50 sheets.
Paper output	150 sheets Face Down (80gsm) 1 sheet face-up (straight paper path)
Standard tray capacity	250 sheets

A4 2-sided print speed	Up to 10 sides per minute (based on ISO/IEC 24734)
A4 standard print speed	Up to 26 pages per minute (based on ISO/IEC 24734)
Resolution	600 x 600 dpi, 2,400 dpi (600 x 2400) quality
Automatic 2 sided print	Yes
Emulations	PCL5e, PCL5c, PCL6（PCL XL Class3.0, BR-Script3, PDF Version 1.7, XPS Version 1.0
First print out time	Less than 13.5 seconds
Recommended monthly volume	Up to 1,500 pages

2-Sided scan	No
Resolution	Glass(Optical): Max 1200 x 1200 dpi, ADF(Optical): Max 600 x 600 dpi, Resolution (Interpolated): Max. 19,200 x 19,200 dpi
Scan to	Email, Image, OCR, File, FTP, FTPS, Network (Windows only).
Speed	27/21 ipm (A4 mono/colour) In accordance with ISO/IEC17991
Scanner type	CIS

Active directory authentication (user authentication)	Yes
Firmware encryption	Yes
LDAP authentication (user authentication)	Yes
Secure boot	Yes
Setting lock	Yes
Store Print Log	Print Log to Network
Syslog	Yes

High-yield toner	TN258XL: BK: Approx. 3,000 pages in accordance with ISO/IEC 19798 CMY: Approx. 2,300 pages in accordance with ISO/IEC 19798
Inbox toner	BK: Approx. 1,000 pages in accordance with ISO/IEC 19798 CMY: Approx. 1,000 pages in accordance with ISO/IEC 19798
Standard toner	TN258: BK: Approx. 1,000 pages in accordance with ISO/IEC 19798 CMY: Approx. 1,000 pages in accordance with ISO/IEC 19798
Supplies	Drum Unit DR258CL: Approx. 20,000 pages (1page/job) Approx. 30,000 pages (3page/job), Belt Unit BU229CL: Approx. 50,000 pages (2 pages/job) Approx. 60,000 pages (3 pages/job), Waste Toner WT229CL: Approx. 50,000 pages (5 pages/job)
