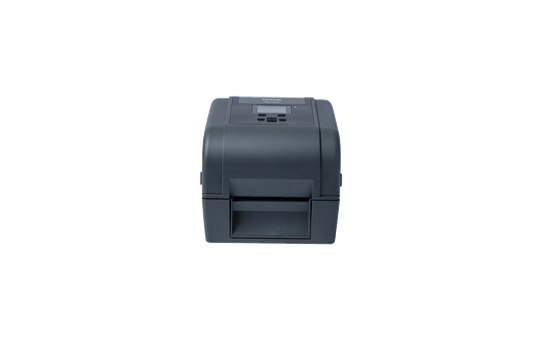

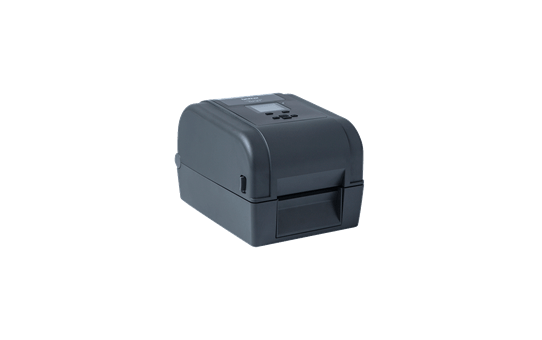

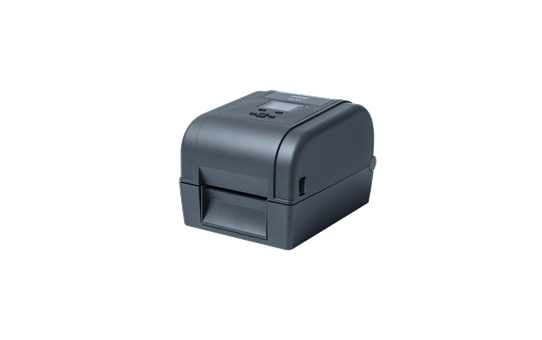

TD4750TNWB

300dpi Thermal Transfer Barcode, Label and Receipt Printer. This precision built barcode label and receipt printer delivers performance, quality, and integration at an exceptional value.

$1,599.95 RRP (Inc. GST)

At a glance

  • usb-icon
  • Bluetooth compatibility
  • Wifi / Wireless compatible
Brother’s TD4750TNWB Thermal Transfer Label and Receipt printer provides the media flexibility, longevity and cost efficiency required for high volume printing at 300dpi resolution. With support for ZPL II emulation and a variety of additional printer command languages, developers can easily integrate printing into existing legacy systems.

Key Features

  • Ease of use with 2.3" colour LCD display
  • Thermal transfer and direct thermal printing technology
  • 300dpi high resolution printing for crisp text and barcodes
  • Range of connectivity options including USB, Network, WiFi and Bluetooth
  • Fast 152.4mm/sec print speed
  • 2 Year Return-to-Base Warranty on hardware

Service & Support

  • Brother-2-Year-Return-to-Base-Warranty-Shield-405x405
  • 24-7-helpdesk
  • brother-free-recycling

Overview


01-Print-Quality_sml

High quality thermal transfer printing

The 300dpi print resolution produces incredibly crisp, easy-to-read text and barcodes using thermal transfer ink ribbons and media. As your printing needs change, so too can the Brother TD4750TNWB label printer.
02-Ribbon_sml

High capacity thermal transfer print ribbons in various materials depending on application

Large capacity ribbons of up to 300 metres can be installed, and are available in wax for standard paper media, wax/resin for improved resistance to chemicals on paper and synthetic media or resin for the best durability against heat and chemicals.
03-Commands_sml

Industry standard printer commands, as standard

Print from Windows using the standard printer driver, or integrate the Brother TD4750TNWB label printer into your legacy systems using ZPL/ZPL2 or EPL printer commands without needing to change your existing software.
04-Print-Speed_sml

Fast print speed and processing to improve efficiency

A fast print speed of 152.4mm/second means less time waiting for your labels to print and more time being productive.
05-Connectivit_sml

Connectivity to suit your requirements

With integrated USB, Ethernet, Serial ports, Bluetooth and WiFi as standard, the Brother TD4750TNWB will have no problems connecting to your existing equipment and infrastructure.
06-Accessories_sml

Optional accessories to further improve productivity

Add a durable label cutter, automatic label peeler or external roll holder for larger capacity rolls to further enhance your efficiency and provide maximum printer up-time.

Specification

Features and Specifications

Maximum label width (mm) 105.7
Office Industrial
Display LCD
Display size 2.3"
Flash RAM 128 MB
LED Power
RAM 128 MB
Technology Direct Thermal and Thermal Transfer
Bluetooth Yes
WiFi Security Authentication method (encryption scheme) *Infrastructure mode. Open system (None/WEP64/WEP128), WPA/WPA2-PSK (TKIP AES), EAP-FAST (TKIP/AES), PEAPv0 (TKIP/AES), EAP-TLS (TKIP/AES), EAP-TTLS (TKIP/AES)
Bluetooth profiles Ver.4.2 SPP (Bluetooth Classic)
Serial RS232
USB interface USB Ver. 2.0 (Full Speed) Type B
Wi-Fi Direct IEEE 802.11 a/b/g/n
Wired network interface 10/100 Mbps
Dimensions 219 mm (W) x 284 mm (D) x 191 mm (H)
Weight 3 kg
AC adaptor Yes
AC adaptor power cord Yes
Others 1" ribbon paper core, 30m standard wax starter ribbon
USB cable Yes
Linux Linux
Macintosh OS X 10 11, Mac OS X 10 12, Mac OS X 10 13, Mac OS X 10 14, Mac OS X 10 15
Windows Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows 8 1, Windows Server 2012, Windows 10, Windows 7
1 dimensional barcode symbologies Code128UCC, Code128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN-13, EAN-8, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2 dimensional barcode symbologies CODABLOCK F mode, RSS Barcode (GS1 DataBar), GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39
Emulations FBPL, ZPLII®, EPL2™, DPL
Maximum print length 25400 mm
Maximum print width 105.7 mm
Resident fonts 8 alphanumeric bitmap fonts. Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font.
Resolution (dpi) 300
Standard print speed 152.4 mm per second
Supported commands FBPL-EZD (Compatible to EPL II, ZPL II, DPL)
SDK (Software Development Kit) Yes
Warranty 2 Year Return-to-Base Warranty
