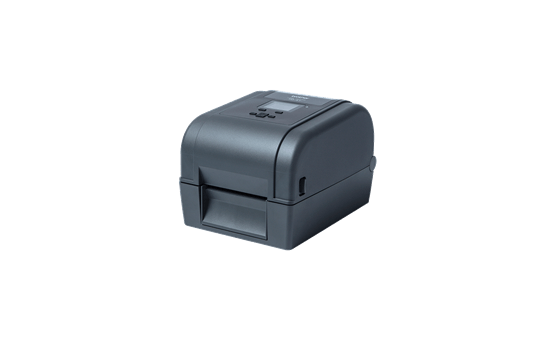

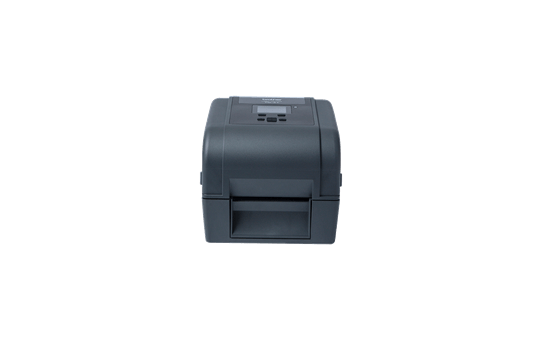

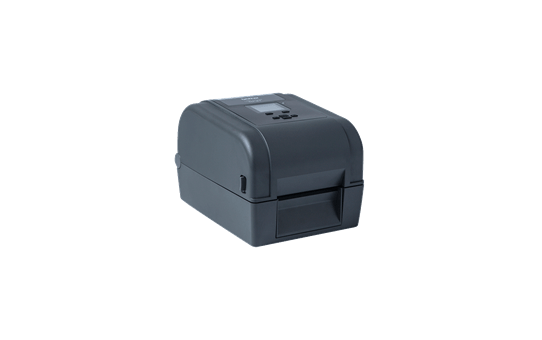

TD-4650TNWB Thermal Transfer Wireless Network Desktop Label Printer

203dpi Thermal Transfer Barcode, Label and Receipt Printer. This precision built barcode label and receipt printer delivers performance, quality, and integration at an exceptional value.

$1,869.95 RRP (Inc. GST)

At a glance

  • usb
  • bluetooth-solid
  • Wifi / Wireless compatible
Brother’s TD4650TNWB Thermal Transfer Label and Receipt printer provides the media flexibility, longevity and cost efficiency required for high volume printing at 203dpi resolution. With support for ZPL II emulation and a variety of additional printer command languages, developers can easily integrate printing into existing legacy systems.

Key Features

  • Ease of use with 2.3" colour LCD display
  • Thermal transfer and direct thermal printing technology
  • 203dpi high resolution printing for crisp text and barcodes
  • Range of connectivity options including USB, Network, WiFi and Bluetooth
  • Fast 203.2mm/sec print speed
  • 2 Year Return-to-Base Warranty on hardware

  • 2-Year Return-to-Base Warranty
  • 24_7 Helpdesk
  • Free Recycling

Overview


01-Print-Quality_sml

High-quality thermal transfer printing

The 203dpi print resolution produces incredibly crisp, easy-to-read text and barcodes using thermal transfer ink ribbons and media. As your printing needs change, so too can the Brother label printer.
02-Ribbon_sml

High capacity thermal transfer print ribbons in various materials depending on application

Large capacity ribbons of up to 300 metres can be installed, and are available in wax for standard paper media, wax/resin for improved resistance to chemicals on paper and synthetic media or resin for the best durability against heat and chemicals.
03-Commands_sml

Industry-standard printer commands, as standard

Print from Windows using the standard printer driver, or integrate the Brother label printer into your legacy systems using ZPL/ZPL2 or EPL printer commands without needing to change your existing software.
04-Print-Speed_sml

Fast print speed and processing to improve efficiency

A fast print speed of 203.2mm/second means less time waiting for your labels to print and more time being productive.
05-Connectivit_sml

Connectivity to suit your requirements

With integrated USB, Ethernet, Serial ports, Bluetooth, and WiFi as standard, this label printer will have no problems connecting to your existing equipment and infrastructure.
06-Accessories_sml

Optional accessories to further improve productivity

Add a durable label cutter, automatic label peeler or external roll holder for larger capacity rolls to further enhance your efficiency and provide maximum printer up-time.

Specification

Features and Specifications

Maximum label width (mm) 108
Office Industrial
Display LCD
Display size 2.3"
Flash RAM 128 MB
LED Power
RAM 128 MB
Technology Direct Thermal and Thermal Transfer
Bluetooth Yes
WiFi Security Authentication method (encryption scheme) *Infrastructure mode. Open system (None/WEP64/WEP128), WPA/WPA2-PSK (TKIP AES), EAP-FAST (TKIP/AES), PEAPv0 (TKIP/AES), EAP-TLS (TKIP/AES), EAP-TTLS (TKIP/AES)
Bluetooth profiles Ver.5.0
Serial RS232
USB interface USB Ver. 2.0 (Full Speed) Type B
Wi-Fi Direct IEEE 802.11 a/b/g/n
Wired network interface 10/100 Mbps
Dimensions 219 mm (W) x 284 mm (D) x 191 mm (H)
Weight without carton (includes toner & drum) 3 kg
AC adaptor Yes
AC adaptor power cord Yes
Others Documentation
Supplies 1” ribbon spindle x 2 and 1” paper core x1
USB cable Yes
Linux Linux
Macintosh Mac OS X 11, OS X 10 11, Mac OS X 10 12, Mac OS X 10 13, Mac OS X 10 14, Mac OS X 10 15
Windows Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows 10, Windows 8.1, Windows 7
1 dimensional barcode symbologies Code128UCC, Code128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN-13, EAN-8, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2 dimensional barcode symbologies CODABLOCK F mode, RSS Barcode (GS1 DataBar), GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39
Emulations FBPL, ZPLII®, EPL2™, DPL
Maximum print length 25400 mm
Maximum print width 108 mm
Resident fonts 8 alphanumeric bitmap fonts. Monotype Image® true type font engine with one CG Triumvirate Bold. Condensed scalable font.
Resolution (dpi) 203
Standard print speed 203.2 mm per second
Supported commands FBPL-EZD (Compatible to EPL II, ZPL II, DPL)
SDK (Software Development Kit) Yes
Warranty 2 Year Return-to-Base Warranty
