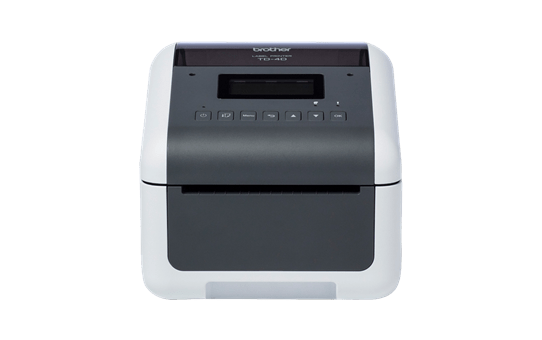

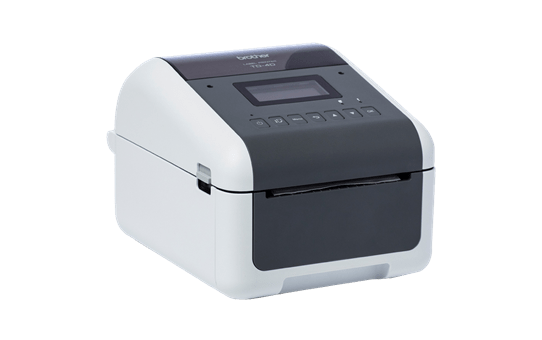

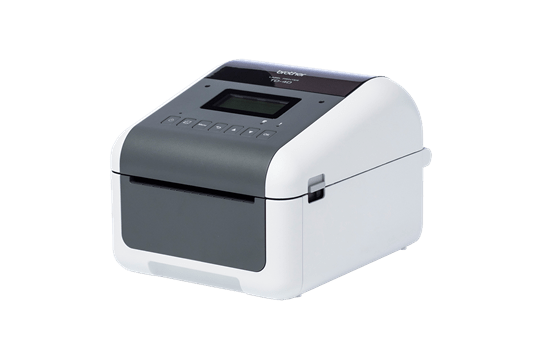

TD-4550DNWB Wireless Network Desktop Label Printer

Print high quality, continuous labels using media up to 118mm wide. With built-in network, wireless and Bluetooth connectivity.

$1,369.95 RRP (Inc. GST)

At a glance

With an intuitive LCD screen, the TD-4550DNWB is a user-friendly desktop label printer. The professional quality resolution, makes this label maker ideal for printing 2D barcodes. Barcodes are easily scanned and quickly processed.

The Bluetooth connectivity allows for setup and configuration with a smartphone or tablet using the Mobile Deploy App. Whilst wireless connectivity removes the need of cables for the network.

Using direct thermal print technology, prevents sheet label wastage. Print only the exact number of labels that you need.

With automatic media calibration, the length and width of your media is calculated. You simply insert your new roll of labels and follow the screen prompts.

Customise to your specific requirements with a range of accessories including peeler and cutter. Making the TD-4550DNWB a truly versatile label maker.

Key Features

User-friendly backlit LCD screen
Professional quality up to 300dpi print resolution
Fast print speeds up to 152mm per second
Prints width up to 4.27 inches / 108mm
Easy set-up with automatic media configuration
Ready to integrate with iOS and Android apps

Overview

Intuitive LCD

The integrated LCD screen makes setting-up and configuration a simple task. The backlit screen with user-friendly buttons, helps you to quickly get up and running.

Flexible connectivity

Use the TD-4550DNWB where you need it, without the need of trailing wires. With built-in WiFi and Bluetooth connectivity, the TD-4550DNWB is truly versatile. Many users can also share the label printer, with the integrated network port.

Remotely update

Enabling IT administrators to remotely update and configure many Brother label printers. Updates are easily uploaded to an online location and the URLs shared with users to install the latest configuration via the Mobile Deploy App.

Integrated USB host

A USB-host is built-in as standard. Enabling a barcode reader or weighing scales to be connected. Barcodes are read to create print information. Using pre-defined templates, your information is printed on to labels.

Seamless integration

For ease of integration, many printer command languages are supported. Including ZPL II emulation, Raster, CPCL emulation enabling integration into legacy systems.

Print from Windows PC

Create customer labels using Brother P-touch Editor. Easily add your company logo or select from hundreds of built-in images, symbols, barcodes and frames. Also, link to excel data to batch print labels.

Specification

Features and Specifications

Maximum label width (mm)	102
Office	Industrial
Buttons	Power, Feed
Database upload from PC	Yes
Flash RAM	40 MB
RAM	256 MB
Technology	Direct thermal

Serial	RS232C Original serial cable
USB interface	USB Ver. 2.0 (Full Speed) (Type B)
Wired network interface	10/100BASE-TX

Dimensions	180 mm (W) x 224 mm (D) x 155 mm (H)
Weight without carton (includes toner & drum)	2.08 kg

AC adaptor	Yes
Quick setup guide	Yes

Windows	Windows 10, Windows 7, Windows 8, Windows Server 2003 & 2008 (32 & 64 bits), Windows Vista, Windows XP

1 dimensional barcode symbologies	Linear: CODE 39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128(UCC/EAN 128), GS1 Databar (Standard (Omnidirectional)/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded), CODE93, POSTNET, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode
Maximum print length	3000 mm
Maximum print width	104.1 mm
Resolution (dpi)	203
Standard print speed	203.2 mm per second
Supported commands	Raster ESC/P P-touch Template ZPL emulation CPCL emulation(CPCL page print mode / CPCL line print mode) SBPL emulation (JP model only)

SDK (Software Development Kit)	Yes

Warranty	2 Year Warranty

Ratings and Reviews

Customer reviews

Supplies and Accessories

Supplies

RDR330NZPL

Thermal Direct Roll - 100mm x 174mm.

View details
RDS05C1 - Die-Cut Labels

Die Cut Labels - 51mm x 26mm.

View details
RDR55NZ25 - Die Cut Labels (5 pack)

Die Cut Labels - 55mm x 25mm (box of 5).

View details
RDS02C1 - Die-Cut Labels

Die Cut Label Rolls - 102mm x 152mm.

View details
RDS01C2 - Continuous length paper label

102mm x 44.7m continuous label roll.

View details
RDS03C1 - Die-Cut Labels

Die Cut Labels 102mm x 50mm.

View details
RDR40NZ25 - Die Cut Labels (6 pack)

Die Cut Labels - 40mm x 25mm

View details
RDR330STDL

Thermal Direct Label Roll - 100mm x 174mm.

View details
TD4100X149 - Thermal Direct Labels

Thermal Direct Label Rolls - 100mm x 149mm

View details
TD455X25 - Thermal Direct Labels

Thermal Direct Label Rolls - 55mm x 25mm

View details
TD490X29 - Thermal Direct Labels

Thermal Direct Label Rolls - 90mm x 29mm

View details
TD490X36 - Thermal Direct Labels

Thermal Direct Label Rolls - 90mm x 36mm

View details
TD499X60 - Thermal Direct Labels

Thermal Direct Label Rolls - 99mm x 60mm

View details

Accessories

PAPR3001

View details
PALP002 Label Peeler for TD4 series

View details
PAHU3001 Thermal Print Head (300dpi)

View details
PA-CU-001 Label Cutter

Automatic label cutter accessory compatible with selected TD desktop label printers.

View details
