TD-4520TN Thermal Transfer Desktop Label Printer

300dpi Thermal Transfer Barcode, Label and Receipt Printer. This precision built barcode label and receipt printer delivers performance, quality, and integration at an exceptional value.

$949.95 RRP (Inc. GST)
Find a local store

At a glance

  • usb-icon
  • p-touch-editor
Brother’s TD-4520TN Thermal Transfer Label and Receipt printer provides the media flexibility, longevity and cost efficiency required for high volume printing at 300dpi resolution.

Key Features

  • Large print width up to 105.7mm wide
  • 300dpi print resolution
  • Max. Up to 127mm/sec print speed
  • USB Ver.20 (High Speed), RS232C, 10/100Base-TX Wired LAN
  • 2 Year RTB Warranty on hardware

What sets us apart

  • 24-7-helpdesk
  • brother-free-recycling
  • Brother-2-Year-Return-to-Base-Warranty-Shield-405x405

Overview


01-Print-Quality_sml

High quality thermal transfer printing

The 300dpi print resolution produces incredibly crisp, easy-to-read text and barcodes using thermal transfer ink ribbons and media. As your printing needs change, so too can the Brother TD4750TNWB label printer.
02-Ribbon_sml

High capacity thermal transfer print ribbons in various materials depending on application

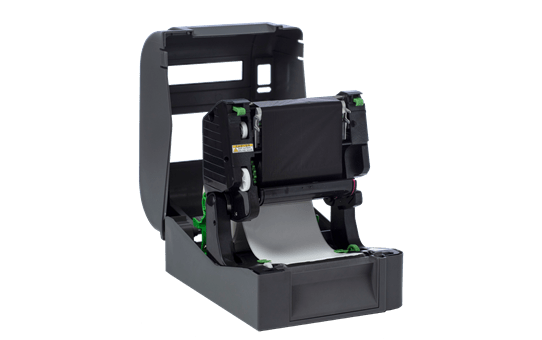

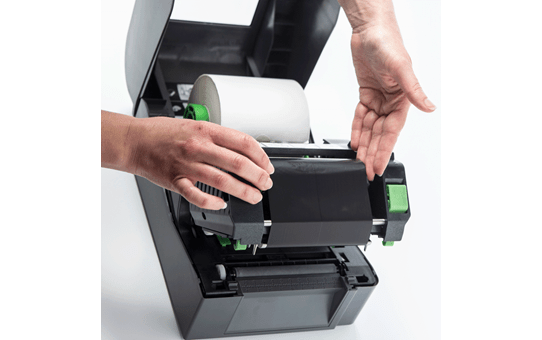

Large capacity ribbons of up to 300 metres can be installed, and are available in wax for standard paper media, wax/resin for improved resistance to chemicals on paper and synthetic media or resin for the best durability against heat and chemicals.
03-Commands_sml

Industry standard printer commands, as standard

Print from Windows using the standard printer driver, or integrate the Brother TD4750TNWB label printer into your legacy systems using ZPL/ZPL2 or EPL printer commands without needing to change your existing software.
04-Print-Speed_sml

Fast print speed and processing to improve efficiency

A fast print speed of 152.4mm/second means less time waiting for your labels to print and more time being productive.
05-Connectivit_sml

Connectivity to suit your requirements

With integrated USB, Ethernet, Serial ports, Bluetooth and WiFi as standard, the Brother TD4750TNWB will have no problems connecting to your existing equipment and infrastructure.
06-Accessories_sml

Optional accessories to further improve productivity

Add a durable label cutter, automatic label peeler or external roll holder for larger capacity rolls to further enhance your efficiency and provide maximum printer up-time.

Specification

Features and Specifications

Maximum label width (mm) 102
Office Industrial
Buttons Power, Feed, Cut
Flash RAM 2 MB
Housing colour Light grey & pearl white
LED Status
Serial RS-232C Serial (9 pin)
USB interface USB Ver. 2.0 (Full Speed)
Wired network interface 10/100Base-TX
Dimensions 173 mm (W) x 229 mm (D) x 158 mm (H)
Weight 1.83 kg
AC adaptor power cord Yes
Others 102 mm continuous black on white label roll (2 metre starter roll)
Software disc CD ROM containing software, drivers and user guide
Supplies 51 mm x 26 mm black on white die cut label roll (60 labels)
USB cable Yes
Windows Windows 7, Windows 8, Windows Vista, Windows XP
Bitmap fonts Helsinki, Letter Gothic Bold, San Diego, Brougham, Brussels
Copies 1-9999 (ESC/P P-touch Template)
Label detection sensor Yes
Label margins 3 mm - 126 mm
Maximum label width 102 mm
Maximum print length 3000 mm
Maximum print width 98.6 mm
Mirror printing Yes
Outline/Vector fonts 33 - 400 dots (22 sizes)
Resolution (dpi) 300 x 300
Sequential numbering 1 - 9999 / A - Z / a - z
Standard print speed 110 mm per second
Supported commands Raster mode, ESC/P, P-touch template mode
Database file compatibility csv, Microsoft Access, Microsoft Excel
Date and time stamp Date and time
Label length settings 25 mm (minimum)
Languages English / Danish / Dutch / French / German / Italian / Norwegian / Portuguese / Spanish / Swedish / Finnish / Czech / Polish / Hugarian / Simplified Chinese / Russian / Turkish / Japanese
Microsoft Office add-in (highlight->click->print) Excel, Outlook, Word
Screen capture Yes
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround
Rolls RD rolls (die-cut and continuous)
