TD-4420TN Thermal Transfer Network Desktop Label Printer

This versatile label printer uses media up to 112mm/4.41-inch wide and prints at 203dpi. It's high capacity ink ribbons require less frequent changing ensuring maximum up-time.

$899.95 RRP (Inc. GST)

At a glance

  • usb
  • p-touch-editor
The TD-4420TN uses innovative thermal transfer technology to create durable labels that stand up to the toughest of tests. SAP and BarTender compatibility* ensure it fits perfectly into your workflows, and there’s the added bonus of customisation options like label peelers, cutters and external roll holders. Plus, you can also use the in-built direct thermal technology to print high-volume, low-cost labels for everyday usage.

Key Features

  • 203dpi printing for crisp text and barcodes
  • Thermal transfer print using high capacity ink ribbons
  • Up to 152mm/second print speed
  • USB, wired ethernet and serial ports as standard
  • Supports popular printer languages including ZPL/ZPL2, EPL and DPL
  • Compatible with Windows, Mac and Linux OS

  • 24_7 Helpdesk
  • Free Recycling
  • 2-Year Return-to-Base Warranty

Overview


01-Print-Quality_sml

Thermal transfer printing for ultimate flexibility

An industry standard 203dpi print resolution gives you crisp, easy-to-read logos, images and barcodes on coated and uncoated label stock using thermal transfer media and ink ribbons.
02-Ribbon_sml

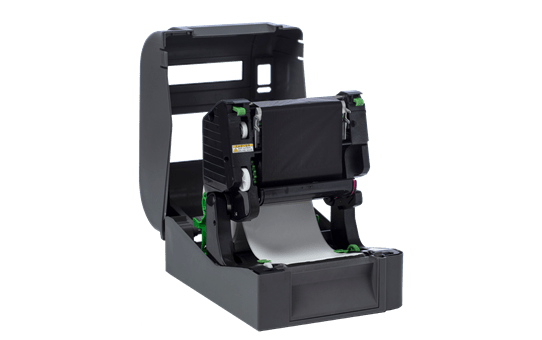

Thermal transfer print ribbons in wax or resin material to suit your application

Standard or premium high capacity ribbons of up to 300 metres can be used, and are available in wax for standard paper media, wax/resin for improved resistance to chemicals on paper and synthetic media or resin for the best durability against heat and chemicals.
03-Commands_sml

Supports industry standard printer commands

In addition to printing from Windows using the standard printer driver, you can integrate the Brother TD-4420TN label printer into your legacy systems thanks to ZPL/ZPL2 or EPL printer commands.

04-Print-Speed_sml

High print speed to improve efficiency

Printing at speeds up to 152mm/second (6 inches per second) ensures staff will have their labels almost immediately, and can spend their time being more productive.
05-Connectivit_sml

Wired connectivity to meet your exact needs

USB, Ethernet and Serial ports are included as standard, ensuring the Brother TD-4420TN will connect to your current equipment and infrastructure without problem.
06-Accessories_sml

A range of accessories to improve staff efficiency

Improve productivity by adding an optional label peeler, label cutter or external roll holder to use much larger capacity rolls and reduce printer downtime.

Specification

Features and Specifications

Maximum label width (mm) 102
Office Industrial
Buttons Power, Feed
Database upload from PC Yes
Flash RAM 40 MB
RAM 256 MB
Technology Direct thermal
Serial RS232C Original serial cable
USB interface USB Ver. 2.0 (Full Speed) (Type B)
Wired network interface 10/100BASE-TX
Dimensions 204 mm (W) x 280 mm (D) x 177.5 mm (H)
Weight without carton (includes toner & drum) 2.5 kg
AC adaptor Yes
AC adaptor power cord Yes
Others Documentation
Supplies 1” ribbon spindle x 2 and 1” paper core x1
USB cable Yes
Linux Linux
Macintosh Mac OS X 11, OS X 10 10, OS X 10 11, Mac OS X 10 12, Mac OS X 10 13, Mac OS X 10 14, Mac OS X 10 15
Windows Windows Server 2008 (32-bit), Windows Server 2008 (64-bit), Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows 10 (32 and 64 bit), Windows 8.1 (32 and 64 bit), Windows 8, Windows 7 32 and 64 bit
1 dimensional barcode symbologies Linear: CODE 39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128(UCC/EAN 128), GS1 Databar (Standard (Omnidirectional)/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded), CODE93, POSTNET, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode
Maximum print length 3000 mm
Maximum print width 108 mm
Resolution (dpi) 203
Standard print speed 203.2 mm per second
Supported commands Raster ESC/P P-touch Template ZPL emulation CPCL emulation(CPCL page print mode / CPCL line print mode) SBPL emulation (JP model only)
SDK (Software Development Kit) Yes
Warranty 2 Year Warranty
