QL-580N Desktop Label Printer

Our best selling desktop labeller for the office

Discontinued

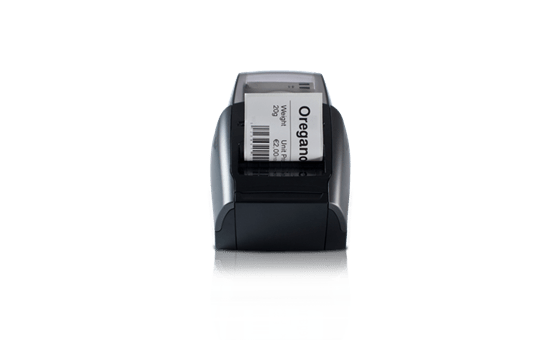

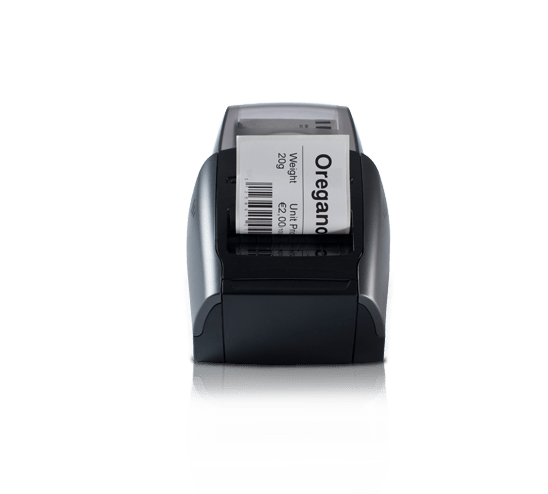

QL-580N Desktop Label Printer
Back Next
  1. QL-580N Desktop Label Printer

This product has been discontinued. Our nearest equivalent is the QL-700

Keep everything present and correct with the QL-580N, which quickly produces durable labels via your PC that can help to make sure you never misplace a file or lose important documents ever again.

Key Features

  • Print multiple die-cut labels and signs via your PC
  • Up to 110mm per second print speed
  • Up to 59mm print height / 62mm print width (DK labels)
  • Easy to install label rolls
  • Built-in automatic tape cutter
  • Personalise your labels with easy-to-use P-touch Editor label software

Overview

Fast and efficient

Keep everything present and correct with the QL-580N, which quickly produces durable labels via your PC that can help to make sure you never misplace a file or lose important documents ever again.

This thermal address label printer delivers professional results with one click, so it’s a handy solution for any business that wants to stay organised.

Simply connect to your PC or Mac via USB, design your label then print. It delivers high-quality results up to one metre in length using a continuous roll, so you can easily create everything from name badges and divider table labels through to signage and shipping labels.

Whether you’re printing hundreds of labels or just one, the QL-580N offers perfect results, time after time.

Specification

Features and Specifications

Maximum label width (mm) 62
Housing colour Grey and glossy black
Technology Direct thermal
Type DK rolls (DK die-cut labels / DK continuous length tape)
USB interface Version 1.1 or 2.0 protocol
Wired network interface 10/100 BASE-TX
Dimensions 133mm (W) x 240mm (D) x 143mm (H)
Weight without carton (includes toner & drum) 1.2 kg
AC adaptor power cord Yes
Tape cassettes 29mm x 90mm black print on white standard address labels (100 labels) - 62mm black/red print on continuous length paper tape (5 meters)
USB cable Yes
User guide Yes
Warranty card Yes
Quick setup guide Yes
Maximum label width 62 mm
Maximum print width 57 mm
Resolution (dpi) 300 x 300
Standard print speed 68 labels per minute
Standard print speed 110 mm per second
Database file compatibility csv, Microsoft Access, Microsoft Excel
Date and time stamp Date and time
Fonts All installed truetype fonts
Frames 126
Label orientations Horizontal, Vertical
Microsoft Office add-in (highlight->click->print) Excel, Outlook, Word
Screen capture Yes
Sequential numbering 1 - 9999 / A - Z / a - z
Text alignment Centre, Justify, Left, Right
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Vertical print Yes
SDK (Software Development Kit) Yes
Warranty 1 year back to base warranty (upon registration)
