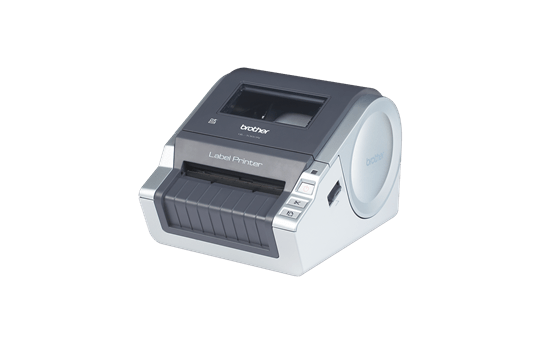

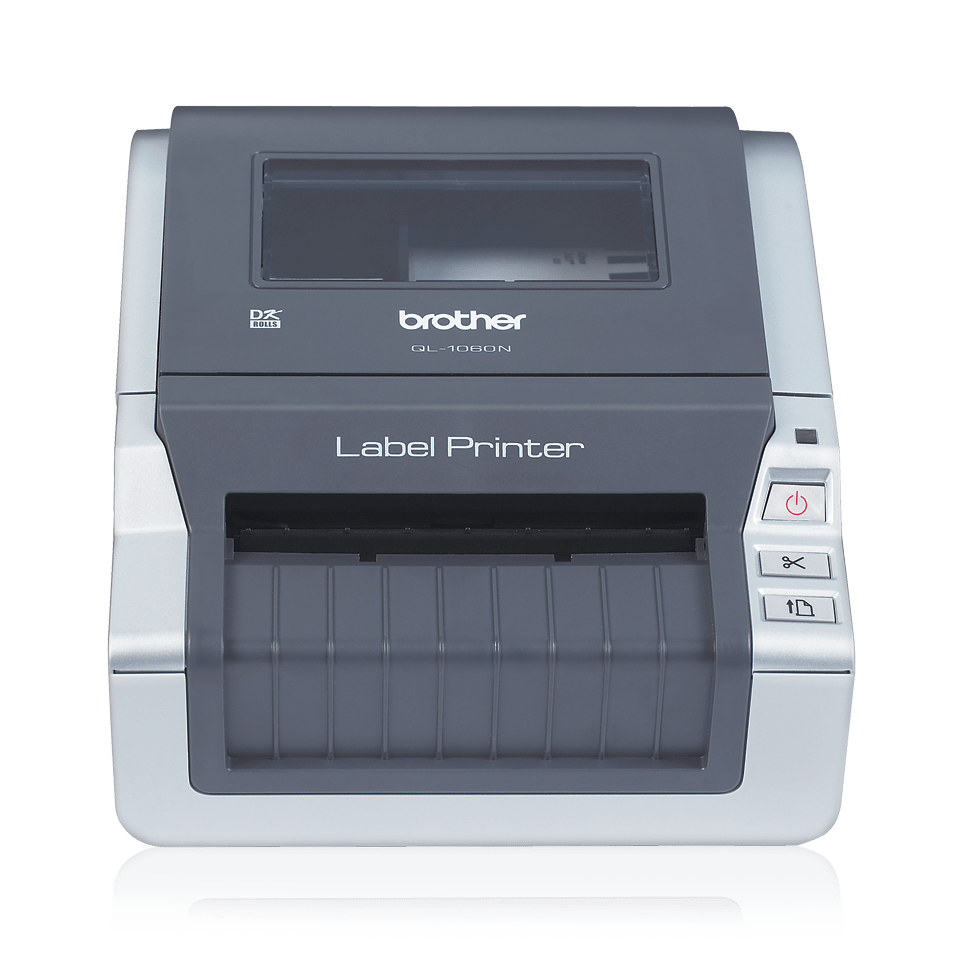

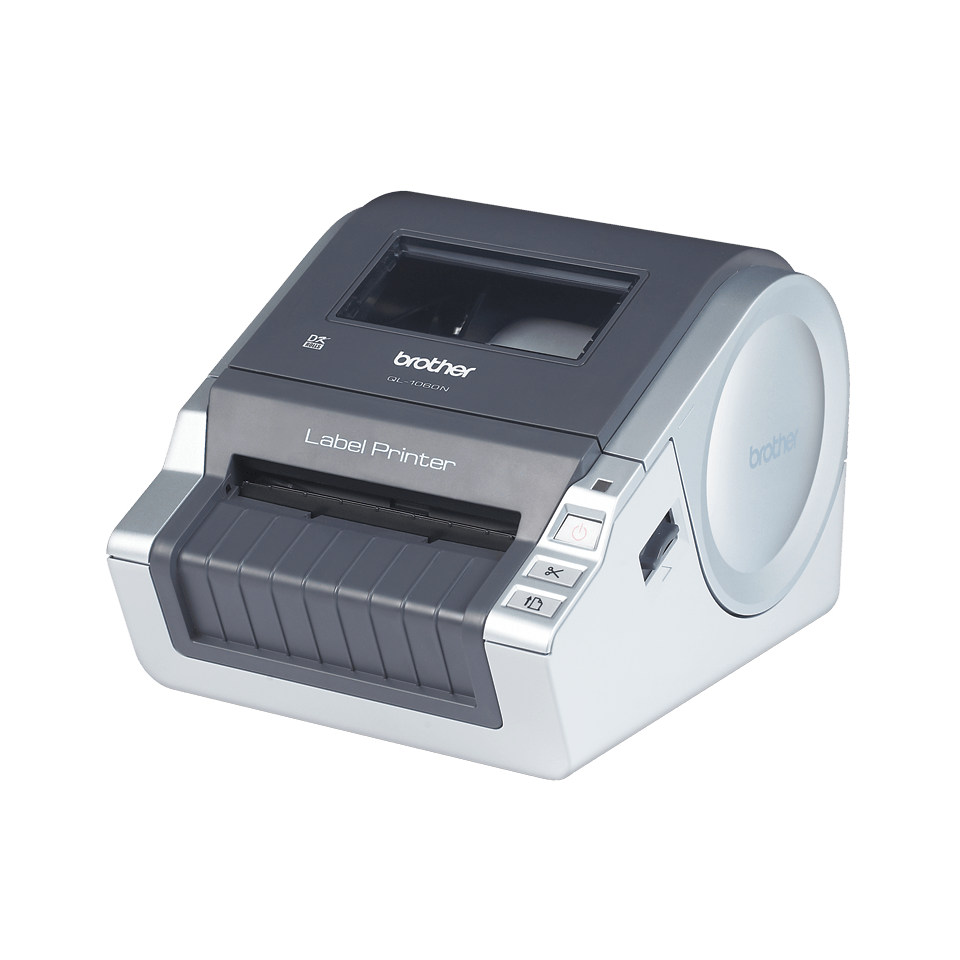

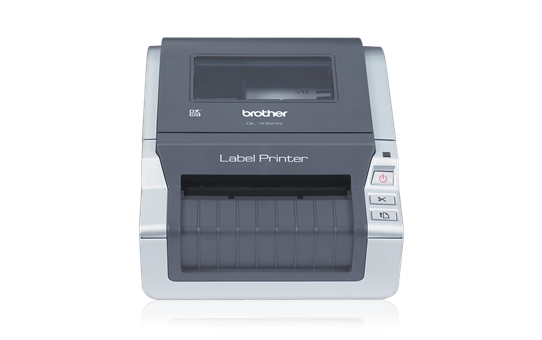

QL-1060N | Wide Label Printer + Network

Overview

Ideal for high-volume networks demanding a larger label

The QL-1060N delivers the best of both worlds – proven, practical label printing with all the increased productivity benefits of wired network connectivity.

Print from any computer in your network to one centralised label printer, where the up to 300dpi print resolution reproduces logos and barcodes perfectly in sizes from 12mm to a massive 102mm wide. And with printing speeds of up to 69 labels per minute and a built-in heavy-duty automatic cutter, high volumes are no problem.

Offering consistent, professional labelling, the QL-1060N makes all the right business connections.

Specification

Features and Specifications

Maximum label width (mm)	102
Office	Office
Built-in power supply	Yes
Housing colour	Black and grey
Image upload from PC	Yes
Memory capacity	2 MB
Memory locations	99
Technology	Direct thermal

Serial	RS-232C
USB interface	1.1 or later
Wired network interface	10/100 Base-TX Network

Dimensions	170mm (W) x 222mm (D) x 148mm (H)
Weight without carton (includes toner & drum)	1.7 kg

AC adaptor power cord	Yes
Power supply cord	Yes
Software	1
Software disc	CD-ROM (Software, Driver, User Guide)
Tape cassettes	DK11241 40 large shipping labels (102mm x 152mm) - DK2205 8m continuous paper tape roll (62mm x 8m)
USB cable	Yes
User guide	Yes
Warranty card	Yes
Quick setup guide	Yes

Windows	Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP

1 dimensional barcode symbologies	CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked
2 dimensional barcode symbologies	PDF417 (Standard, Truncated, Micro), QR Code (Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode
Bitmap fonts	Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
Maximum label width	102 mm
Maximum print width	98.6 mm
Resident fonts	Helsinki, Brussels, Letter Gothic
Resolution (dpi)	300 x 300
Standard print speed	69 labels per minute
Standard print speed	110 mm per second

Database file compatibility	csv, Microsoft Access, Microsoft Excel
Date and time stamp	Date, Date and time, Time
Fonts	All installed truetype fonts
Microsoft Office add-in (highlight->click->print)	Excel, Outlook, Word
Screen capture	Yes
Text alignment	Centre, Justify, Left
Typestyles	Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Surround
Vertical print	Yes

SDK (Software Development Kit)	Yes

Rolls	DK rolls (DK Die-cut Labels / DK Continuous Length Tape)

Warranty	3 year back to base warranty (upon registration)
