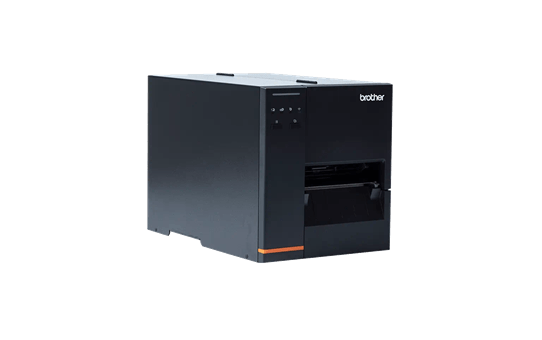

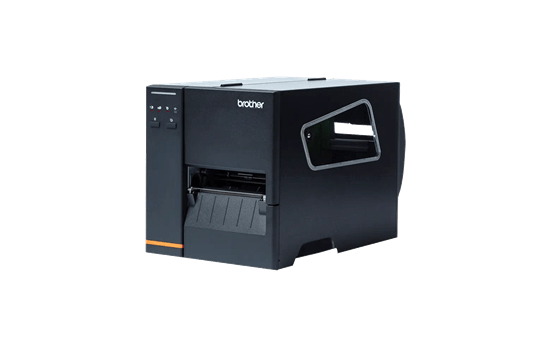

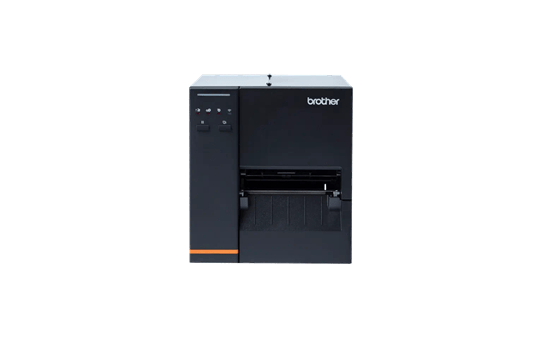

TJ-4020TN Industrial Label Printer

Industrial thermal label printer with 203dpi print resolution, print width up to 107mm and print speeds up to 10ips.

TJ-4020TN Industrial Label Printer TJ-4020TN Industrial Label Printer 2 TJ-4020TN Industrial Label Printer 3 TJ-4020TN Industrial Label Printer 4 TJ-4020TN Industrial Label Printer 5 TJ-4020TN Industrial Label Printer 6 TJ-4020TN Industrial Label Printer 7 TJ-4020TN Industrial Label Printer 8
Back Next
  1. TJ-4020TN Industrial Label Printer
  2. TJ-4020TN Industrial Label Printer 2
  3. TJ-4020TN Industrial Label Printer 3
  4. TJ-4020TN Industrial Label Printer 4
  5. TJ-4020TN Industrial Label Printer 5
  6. TJ-4020TN Industrial Label Printer 6
  7. TJ-4020TN Industrial Label Printer 7
  8. TJ-4020TN Industrial Label Printer 8
$1,874.95 RRP (Inc. GST)

Enquire now

The Brother TJ4020TN industrial label printer offers performance you can rely on when keeping up with increasing demand.

The high-volume thermal label printer has been designed to ensure minimal downtime and maximum productivity through fast print speeds, large ribbon capacity and in-built durability.

With ZPL2 emulation compatibility and multiple connectivity options, the TJ4020TN has been built with you in mind.

Key Features

  • Fast print speeds of up to 10ips with 203dpi resolution
  • LED notification to indicate printer status
  • Print width of up to 107mm
  • FBPL-EZD (EPL2, ZPL2, DPL) printer command languages supported
  • High capacity 450m thermal transfer ribbon means fewer consumable changes
  • Connect easily with USB, USB Host, Serial, Ethernet and WiFi (optional)

  • 24_7 Helpdesk
  • 2-Year On-site Warranty

Overview

integrate-with-ease-overview-tile_300x200px

Integrate with ease

With the Brother TJ series, there is no need to worry about integration. Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.
maximise-productivity-overview-tile_300x200px

Maximise productivity

The TJ-4020TN label machine offers fast print speeds to help you keep up with increasing demand. The high volume label printer is perfect for manufacturing and transport & logistics environments.
connectivity-as-standard-overview-tile_300x200px

Connectivity as standard

USB, USB Host, Serial and Ethernet are included as standard for the industrial printers. An optional WLAN interface for Wi-Fi connectivity is also available as an accessory to meet your requirements.
in-built-durability-overview-tile_300x200px

In-built durability

Brother industrial label printers have been built with you in mind, and built to last, ensuring you enjoy years of hassle-free label printing. The high volume industrial printers feature a metal frame and cover as well as other durable design features to ensure they perform at their best, even in the toughest production environments.

Specification Details

Features and Specifications

Office Industrial
Buttons Power, Feed
Flash RAM 128 MB
LED Power, Status, Error
RAM 128 MB
Technology Direct Thermal and Thermal Transfer
Serial RS-232 (Max. 115200 bps)
USB interface USB 2.0, USB Host
Wired network interface 10/100 Mbps
Wireless network interface Slot-in 802.11 a/b/g/n module (user option)
Dimensions 248mm(W) x 274mm(H) x 436mm(D)
Weight without carton (includes toner & drum) 9.2 kg
AC adaptor power cord Yes
Label design software Bartender Ultra Lite Edition (downloadable)
USB cable Yes
Quick setup guide Yes
Android V8 or later
iOS iOS® 11 or later
Macintosh Mac OS 10.13.x or higher
Windows Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 10, Windows 7, Windows 8.1
Linux Linux
1 dimensional barcode symbologies Code128UCC, Code128 subsets A、B、C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPENN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2 dimensional barcode symbologies CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39
Label detection sensor Yes
Maximum label width 120 mm
Maximum print length 25400 mm
Maximum print width 107 mm
Resident fonts 8 alpha-numeric bitmap fonts, Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font
Resolution (dpi) 203
Standard print speed 254 mm per second
Supported commands FBPL-EZD (EPL2, ZPL2, DPL)
SDK (Software Development Kit) Yes

Rating and Reviews

Customer reviews

  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getReviews, 672ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;Execution timed out, exceeded 500ms;

Optional Accessories

  • PA-CU-004 Label Cutter

    PA-CU-004 Label Cutter

    Automatic label cutter accessory compatible with selected TJ industrial printers.

    View details
  • PA-LP-005 Label Peeler

    PA-LP-005 Label Peeler

    Automatic label peeler accessory with liner rewind, compatible with selected TJ industrial label printers.

    View details
  • PA-WI-002 WLAN Interface

    PA-WI-002 WLAN Interface

    Slot-in Wi-Fi module accessory compatible with selected TJ industrial printers.

    View details
